Power supply type Office Series

ATX standard ATX V2.31

Connectors

20+4 pin mainboard 1x 40 cm

4+4 pin mainboard 12V 1x 40 cm

PCI-Express 1x PCI-Express 6-Pin 40 cm;

1x PCI-Express 6+2-Pin 50 cm

SATA 6 (2x 40 / 2x 50 / 1x 55 / 1x 65 cm)

PATA 3 (2x 60 / 1x 75 cm)

FDD 2x 70 cm

Mark of conformity CE

Fan 120 mm

PFC active

Dimension h x w x d 86 x 150 x 140mm

Weight (retail) 1,467 kg

Power rating 600W max. / peak

+3,3V 24A

+5V 24A

+12V1 20A

+12V2 20A

Standby consumption 0,25W - ErP 2013

Temperature control for case fan yes

Security circuitry OVP = Over-Voltage Protection

OPP = Over-Power Protection

SCP = Short-Circuit Protection

UVP = Under-Voltage Protection

Full range (110V/220V) no

Haswell compatible yes

Barcode 4260070122286

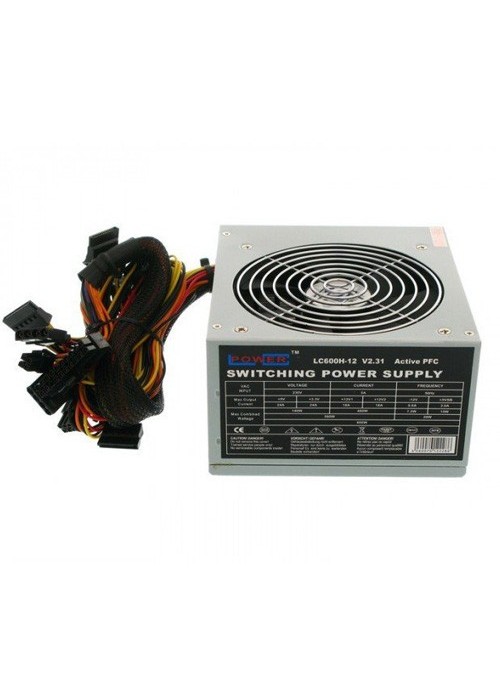

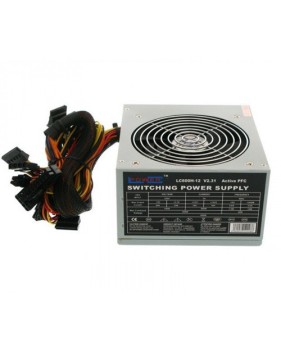

Manufacturer code LC600H-12 V2.31
