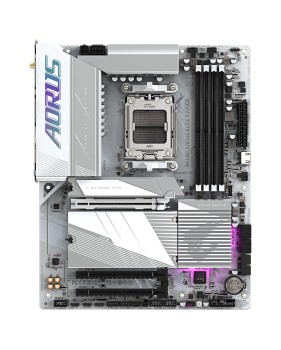

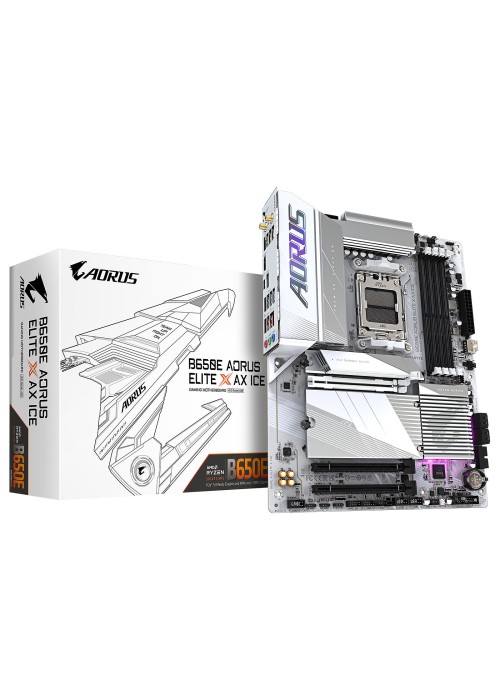

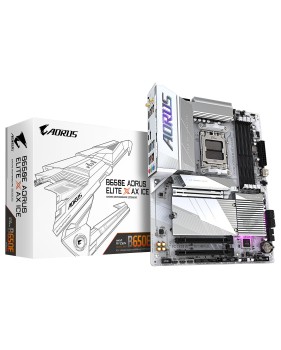

Gigabyte B650E AORUS ELITE X AX ICE

72 000,00 DA
TTC
Quantité

Gaming motherboard socket AM5, DDR5 and PCI-Express 5.0

The Gigabyte B650E AORUS ELITE X AX ICE motherboard is ideal for laying the foundations of a cutting-edge gaming configuration. It is designed to support an AMD Ryzen 7000 or 8000 processor on an AMD AM5 socket. It supports DDR5PCI-Express 5.0 graphics cards and 5.0 SSDs, and comes with full connectivity, including 2.5 GbE LANWi-Fi 6E and Bluetooth 5.2, as well as USB 3.1 & 3.2.

Gigabyte B650E AORUS ELITE X AX ICE extras

  • AMD AM5 socket for AMD Ryzen 7000/8000 processor
  • dual-channelDDR5 8000 MHz (OC)memory slots with EXPO and XMP support
  • Digital Twin 12+2+2 Phases VRM
  • 3 x M.2 (1 x PCIe 5.0 + 2 x PCIe 4.0)
  • EZ-Latch PLus : Quick locking/unlocking of M.2 slots (no screws required)
  • Wi-Fi 6E and Bluetooth 5.3 + 2.5 GbE LAN
  • Q-Flash Plus: BIOS update without installing a processor, memory or graphics card

Play in the best conditions

The high frequencies of AMD Ryzen Zen 4 processors are a real advantage when it comes to gaming. Choose the right components and build a high-performance gaming PC that's latency-free and ready to go when you need it. Get the edge over your opponents and reach new heights with AMD Ryzen 7000 processors and AMD AM5 motherboards.

AMD Ryzen 7000 processors deliver performance across the board. They'll help you create faster, achieve your goals faster and save time all the time. From 3D rendering to exporting large video files, design, deliver and get the job done with PCIe 5.0 speed and storage, multiple processing threads and dedicated video accelerators.

Caractéristiques techniques :
CPU
CPU AMD Ryzen 7xxx / 8xxxG / 9xxx (peut nécessiter une mise à jour via le bouton Q-flash Plus)
Chipset
AMD B650
Socket
AM5
Mémoire
Fréquence de base max : 5200 MHz
Fréquence EXPO / XMP max : 8000 MHz
  • 4 x DDR5 DIMM, max 192 Go 8000(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6666(OC)/6600(OC)/6400(OC)/6200(OC) / 6000(OC)/5600(OC)/5200/4800/4400 MHz, non-ECC, un-buffered memory
  • Architecture mémoire Dual Channel
  • Support AMD EXPO
Slots d'extension
Processeur
  • 1 x PCI Express 5.0 x16 (PCIEX16)*
Chipset
  • 2 x PCI Express 3.0 x16 en mode x1 (PCIEX1_1/2)
*Supporte le PCIe 4.0 x8 sur les Ryzen 8000 Phoenix 1 et PCIe 4.0 x4
Compatibilité multi-GPU
AMD CrossFire™ technology (PCIEX16 and PCIEX4)
Carte graphique
  • 1 x HDMI 2.1 (résolution max 4K @ 60Hz)
  • 1 x HDMI 1.4 interne (résolution max 1080p @ 30Hz) pour Sensor Panel Link
  • 1 x USB 3.1 Type-C supportant le DisplayPort (résolution max 3840x2160@144 Hz)
Stockage
  • 4 x connecteurs SATA3 6.0 Go/s, compatible RAID (RAID 0, RAID 1 et RAID 10)
  • 1 x M.2 Socket (M2A_CPU) M Key 2280/25110 M.2 PCIe 5.0 x4*
  • 2 x M.2 Socket (M2B_CPU et M2C_SB) M Key 2280/22110 M.2 PCIe 4.0 x4*

Support RAID 0, RAID 1, RAID 10 pour les SSD NVMe
*Pour les processeurs Ryzen 8000 Phoenix 1 et 2 M2A_CPU supporte le PCIe 4.0 x4 et M2B_CPU le PCIe 4.0 x4 sur Phoenix 1 et 4.0 x2 sur Phoenix 2
LAN
Realtek 2,5 Gbps
Sans Fil
Realtek Wi-Fi 6E RTL8852CE
  • Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
  • Fréquences supportées 2.4/5/6GHz*
  • Bluetooth v5.3
USB
  • 1 x USB 3.2 Type C (interne)
  • 1 x USB 3.1 Type C (à l'arrière)
  • 2 x USB 3.1 Type A (à l'arrière)
  • 6 x USB 3.0 (5 à l'arrière et 1 interne)
  • 6x USB 2.0 (4 à l'arrière, 2 internes)
Audio
Realtek HD AUDIO
  • Audio HD 7.1
Interface E/S arrière
  • 1 x Bouton Q-Flash Plus
  • 2 x Connecteurs d'antenne SMA (2T2R)
  • 1 x Port HDMI 2.1
  • 1 x USB 3.1 Type-C compatible DisplayPort 1.4
  • 2 x Ports USB 3.1 Type-A
  • 5 x Ports USB 3.0
  • 4 x Ports USB 2.0
  • 1 x Port RJ-45
  • 3 x Prises audio
Interface E/S interne
Ventilateur et refroidissement :
  • 1 x Connecteur pour ventilateur de CPU
  • 1 x Connecteurs pompe AIO
  • 3 x Connecteurs de ventilateur système
  • 1 x Connecteurs de ventilateur système/pompe de refroidissement à eau
Alimentation :
  • 1 x Connecteur d'alimentation principale ATX à 24 broches
  • 1 x Connecteurs d'alimentation ATX 12V à 8 broches
  • 1 x Connecteurs d'alimentation ATX 12V à 4 broches
Stockage :
  • 3 x Connecteurs M.2 Socket 3
  • 4 x Connecteurs SATA 6Gb/s
USB :
  • 1 x Connecteur USB 3.2 Type-C
  • 1 x Connecteurs USB 3.0
  • 2 x Connecteurs USB 2.0
Autres :
  • 3 x Connecteurs de bande de LED adressables
  • 1 x Connecteurs de bande de LED RGB
  • 1 x Connecteur pour module Trusted Platform (uniquement pour le module GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0)
  • 1 x port HDMI (fonctionne uniquement avec le chipset intégré au processeur) - pour Sensor Panel Link
  • 1 x Bouton de réinitialisation
  • 1 x Cavalier de réinitialisation
  • 1 x Cavalier Clear CMOS
  • 1 x Connecteur de panneau avant
  • 1 x Connecteur audio en façade
BIOS
BIOS de type UEFI 256 MB avec interface graphique
AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Format
  • ATX
    • 30.5 x 24.4 cm
